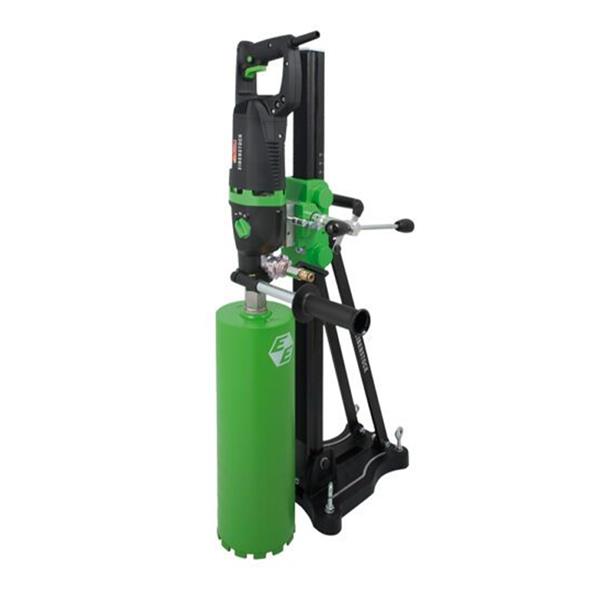

The Eibenstock ETN162/3 110V Diamond Core Drill Rig is a professional diamond drilling set designed for both handheld use and operation with a drill stand. Built for demanding drilling applications in construction, civil engineering, and installation work, it is suitable for dry drilling in abrasive materials and wet drilling in reinforced concrete, natural stone, and asphalt.
Engineered for precision, durability, and versatility, this new-generation machine features a 3-speed oil bath gearbox, integrated dust extraction or water supply, and a range of protective and performance-enhancing systems. With electronic soft start, overload protection, constant speed control, and a quick-mount drill rig system, it is designed to deliver reliable results while making operation and setup more efficient on site.
✨ Key Features:
Professional diamond drill set for handheld use or use with a drill stand
Suitable for dry drilling in sand-lime brick, brickwork, clinker, and other abrasive materials
Suitable for wet drilling in reinforced concrete, natural stone, and asphalt
Designed for sanitary, heating, ventilation, civil engineering, and landscape construction work
Powerful 2300W motor for demanding drilling applications
3-speed oil bath gearbox for optimal lubrication in all working positions
Rated speeds of 510 / 1150 / 2500rpm
Electronic soft start for smoother operation
Temperature control and overcurrent cut-off for added protection
Optical overload indication and constant speed control
Mechanical safety clutch for safer operation
Service LED indicates when the carbon brushes need changing
Combination spindle with integrated connection for centring rod for precise spot drilling
Integrated dust extraction or water supply system
PRCD switch for added electrical safety
Extra adjustable handle for improved control
Quick-mounting system allows the motor to be fitted to the drill rig without tools
Drill rig column can be adjusted to 45°
Compact combination base can be fixed with anchor or vacuum
Feed lever can be changed without tools
Integrated spirit level and hole centre indicator for accurate drilling
Useful stroke of 700mm
Dry drilling diameter range: 12–202mm
Wet drilling diameter range: 12–162mm
Spindle connection: G½" female + 1¼" male
Weight: 20.7kg
Includes drill stand
Diamond drill not included
A powerful and versatile diamond core drill rig designed for professional users who need accurate, efficient drilling performance across a wide range of dry and wet applications.
